NVIDIA RTX 2000 Embedded GPU MXM Module Based On Ada Lovelace Architecture.

SKU: MX2000A-VA

Key Features

Overview

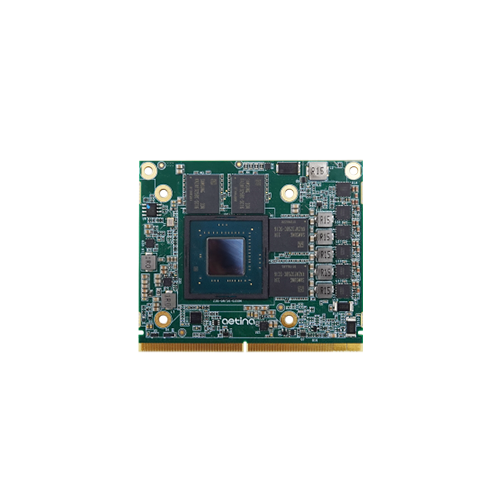

The MX2000A-VA MXM 3.1 Type A module features an NVIDIA RTX 2000 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks. With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.

Need Assistance?

Specifications

System

GPU Engine:
NVIDIA RTX 2000 Ada Generation Embedded GPU.
NVIDIA Ada Lovelace Architecture.
3072 CUDA Cores.
96 Tensor Cores.
24 RT Cores.
12.99 TFLOPS Floating Point Performance.
1635 MHz (Base) / 2115 MHz (Boost) Core Clock.

Memory:
8GB GDDR6
16 Gbps Speed.
128-bit Interface Width.
256 GBs Bandwidth.

I/O

Display:
7680 x 4320 Resolution.
3 x DisplayPort 1.4a.

Feature Support:
PCI Express 4.0 x8.
DirectX: 12 Ultimate.
Open GL 4.6.
Vulkan 1.2.

Power

Power Consumption:
60W Total Graphics Power (TGP).

Environmental

Standard Operating Temperature (MX2000A-VAA-A1):
0°C to + 55°C (32°F ~ 131°F).

Extended Operating Temperature (MX2000A-VAW-A1):
-40°C to + 85°C (-40°F ~185°F).

Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).

Humidity:
95% @ 40°C (104°F) (Non-condensing).

Certification:
CE / FCC / UKCA.

Mechanical

Dimension (W x D):
82 x 70 mm (3.22” x2.75”).

Weight (Net):
0.037 kg (0.082 lb).

Other Features

Software Support:
Windows 10/11 (64-bit).
Linux (64-bit).

Form Factor:
MXM Graphics Module Version 3.1 (Type A).
