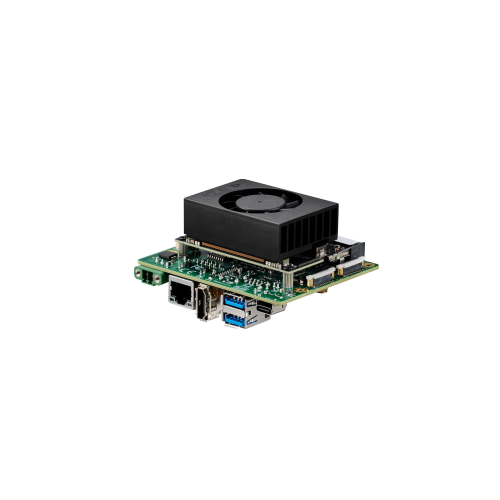

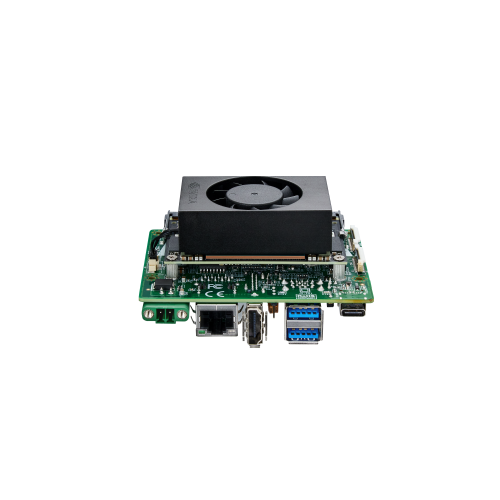

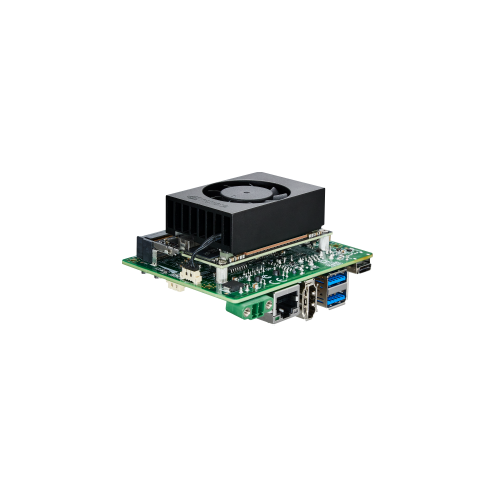

Industrial Grade Jetson Orin Nano / Orin NX Carrier Board
SKU: AIB-SO21/31 | AIB-SN31/41
Key Features
- Optional Out-Of-Band MGT
- 2 x 4-Lane MIPI CSI-2.
- 5 x GPIO
- Isolated CAN (Inc. CAN FD)
- Compact Size
- Available Until 2032
Overview
Up to 80 x AI performance enables AI inference in the smallest Jetson form factor
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Module Compatibility:
NVIDIA Jetson Orin Nano 4GB (AIB-SO21).
NVIDIA Jetson Orin Nano 8GB (AIB-SO31).
NVIDIA Jetson Orin NX 8GB (AIB-SN31).
NVIDIA Jetson Orin NX 16GB (AIB-SN41).
AI Performance:
20 TOPS (AIB-SO21).
40 TOPS (AIB-SO31).
70 TOPS (AIB-SN31).
100 TOPS (AIB-SN41).
GPU:
512 Core NVIDIA Ampere (16 Tensor Cores) (AIB-SO21).
1024 Core NVIDIA Ampere (32 Tensor Cores) (AIB-SO31 / AIB-SN31 / AIB-SN41).
CPU:
6-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 1.5MB L2 + 4MB L3 (AIB-SO21 / AIB-SO31 / AIB-SN31).
8-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 2MB L2 + 4MB L3 (AIB-SN41).
Memory:
4GB 64-bit LPDDR5 34GB/s (AIB-SO21).
8GB 128-bit LPDDR5 68GB/s (AIB-SO31).
8GB 128-bit LPDDR5 102.4 GB/s (AIB-SN31).
16GB 128-bit LPDDR5 102.4 GB/s (AIB-SN41).
Storage:
1 x M.2 M-Key 2242 (NVMe 128GB built-in).
Expansion:
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2242 (NVMe 128GB built-in).
I/O
Display:
1 x HDMI 2.0 (Type A).
Audio:
Line-out / Line-in / Mic (Optional with daughter board).
LAN:
1 x RJ-45 GbE ports.
USB:
2 x USB 3.2 (Gen2) (Type A) (Supports up to 10Gbps shared).
1 x OTG (Type-C).
Other I/O:
5 x GPIO.
1 x I2C.
1 x I2S.
1 x RS-232.
1 x UART.
1 x UART (Debug Only).
1 x SPI.
1 x CAN (Isolation / Supports CAN FD).
Power
Power Consumption:
5.4W Idle / 27.08*W Full Loading (AIB-SO21 / AIB-SO31).
5.7W Idle / 37.5W* Full Loading (AIB-SN31 / AIB-SN41).
*For more test condition information, please refer to user manual
Power Input/Connector:
DC-in 12-24VDC / 2-Pin Terminal Block.
Environmental
Operating Temperature:
-25°C ~ +80°C (-13°F ~ +176°F).
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
Certification:
CE / FCC Class A / UKCA.
Mechanical
Dimension (W x D x H):
87.4 x 67.4 x 28.45 mm (3.44 x 2.65 x 1.12 in).
Weight (Net):
0.144 kg (0.32 lb) With Fansink.
Other Features
RTC:
With super capacitor battery (Optional).
MIPI Camera Input:
2 x 4-Lane MIPI CSI-2 (22-Pin Connector).
MISC. Function:
1 x Power / 1 x Recovery / 1 x Reset Button.
Software Support:
Linux (Support Jetpack 5.0 above).
