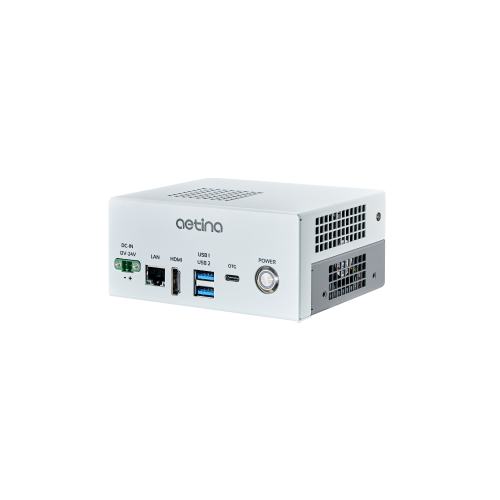

Industrial Jetson Orin Nano / Orin NX System
Key Features
- -25°C to +70°C Operating Temp
- Analogue Audio (Optional)
- Isolated CAN (Inc. CAN FD)
- 5 x GPIO
- Wide DC Input
- Available Until 2032
Overview
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Module Compatibility:
NVIDIA Jetson Orin Nano 4GB (AIE-KO21).
NVIDIA Jetson Orin Nano 8GB (AIE-KO31).
NVIDIA Jetson Orin NX 8GB (AIE-KN31).
NVIDIA Jetson Orin NX 16GB (AIE-KN41).
AI Performance:
20 TOPS (AIE-KO21).
40 TOPS (AIE-KO31).
70 TOPS (AIE-KN31).
100 TOPS (AIE-KN41).
GPU:
512 Core NVIDIA Ampere, with 16 Tensor Cores (AIE-KO21).
1024 Core NVIDIA Ampere, with 32 Tensor Cores (AIE-KO31 / AIE-KN31 / AIE-KN41).
CPU:
6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 (AIE-KO21 / AIE-KO31 / AIE-KN31).
8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 (AIE-KN41).
Memory:
4GB 64-bit LPDDR5 34GB/s (AIE-KO21).
8GB 128-bit LPDDR5 68GB/s (AIE-KO31).
8GB 128-bit LPDDR5 102.4 GB/s (AIE-KN31).
16GB 128-bit LPDDR5 102.4 GB/s (AIE-KN41).
Storage:
1 x M.2 M-Key 2242 (128GB built-in).
Expansion:
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2242 (128GB built-in).

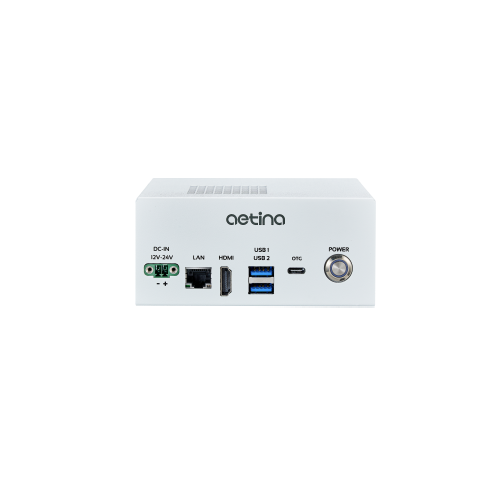

I/O
Display:
1 x HDMI 2.0 (Type A).
Audio:
Line-out/Line-in/Mic (Optional with daughter board).
Ethernet:
1 x RJ-45 GbE.
USB:
2 x USB 3.2 (Gen2) (Type A) (Supports up to 10Gbps shared).
1 x OTG (Type-C).

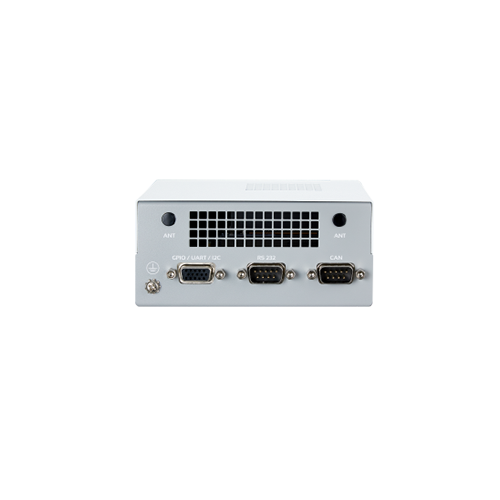

Other:
5 x GPIO.
1 x I2C.
1 x RS-232.
1 x UART.
1 x CAN (Isolation / Support CAN FD).
Power
Input/Connector:
DC-in 12-24VDC / 2-Pin Terminal Block.
Power Consumption:
8.5 W Idle / 30.25* W Full Loading (AIE-KO21 / AIE-KO31).
7.6 W Idle / 40.25* W Full Loading (AIE-KN31 / AIE-KN41).
*For more test condition information, please refer to user manual.
Environmental
Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
Operating Temperature:
-25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow.
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Certification:
CE / FCC Class A / UKCA.
Mechanical
Dimension (W x D x H):
123 x 99 x 56 mm (48.4 x 38.9 x 22 in).
Mounting:
Wall Mount (Optional) / Din Rail (Optional).
Weight (Net):
0.54 kg (1.2 lb).
Other Features

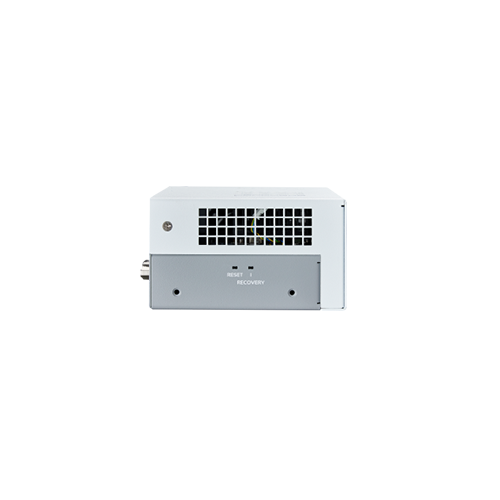

Button Function:
1 x Power Button / 1 x Recovery Button / 1 x Reset Button.
Software Support:
Linux (Support Jetpack 5.0 above).
