9th Gen Fanless GPU Computer With Nvidia Graphics Card & PoE Ports
SKU: eBOX671-521-FL
Key Features
- 8th / 9th Gen Intel® Core™ CPU.
- 4 Channel PoE (IEEE802.3at).
- Dual Swappable 2.5″ HDD Bays.
- MXM 3.1 Type A GPU Support.
- Triple Independent Display.
- Intelligent Remote Monitoring.
Overview
The Axiomtek eBOX671-521-FL is a GPU computing embedded system that comes with 4 channel PoE and MXM 3.1 Type A slot for applications in machine vision, edge computing, traffic vision, deep learning, and artificial intelligence of things.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Processor:
9th Gen Intel® Core™ i7/i5/i3 or Celeron® processors (LGA1151) (35W).
8th Gen Intel® Core™ i7/i5/i3 or Celeron® processors (LGA1151) (35W/65W).
Chipset:
Intel® Q370.
Intel® C246 PCH (Optional).
Graphics Chipset:
Onboard Graphics.
Memory:
2 x 2666MHz (260-pin) DDR4 SO-DIMM (ECC supported by Intel® C246 PCH).
Up to 64GB Max Capacity.
Storage:
2 x 2.5″ HDD drive bay (Max up to 9.5 mm height).
1 x mSATA (Enabled in BIOS setting).
RAID:
RAID 0 & 1.
Expansion:
2 x Full-size PCI Express Mini Card slot (USB + PCIe signal).
2 x SIM slot.
1 x MXM3.1 (Type A).

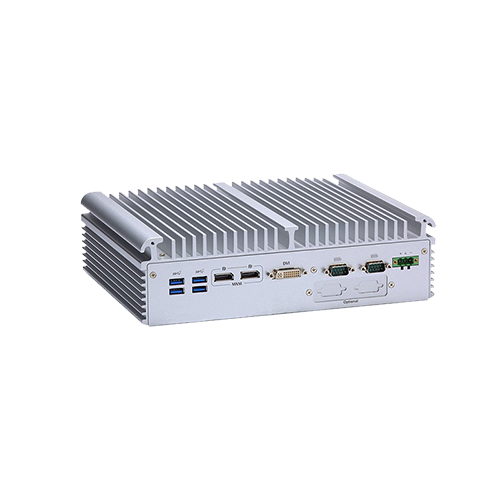

I/O
2 x RS-232/422/485.
2 x DisplayPort Via Optional MXM Kit.
1 x HDMI.
1 x DisplayPort.
1 x DVI-I.
4 x power over Ethernet (IEEE802.3at) (Up to 60W).
2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT and I219-LM).
2 x USB 3.1 (Gen 2) / 4 x USB 3.1 (Gen 1).
1 x Phoenix-type VDC Power Input Connector.
1 x AT/ATX Quick Switch.
1 x ATX Power Switch.
1 x Reset Switch Connector.
1 x Remote Switch.
1 x Flexible I/O Window (Default: 2 x DB9 Half-cut Bracket).
4 x SMA-type Antenna Connector.
Power
Input Voltage Range:
24 VDC.
Connector Type:
1 x Phoenix type VDC power input connector.
Other Power Features:
1 x AT/ATX quick switch.
1 x ATX power switch.
Environmental
Operating Temperature (Without MXM Module):
-40°C to 60°C (-40°F to +140°F) with W.T. DRAM & SSD, CPU TDP 35W.
-40°C to 50°C (-40°F to +122°F) with W.T. DRAM & SSD, CPU TDP 65W.
Operating Temperature (With MXM Module):
-40°C to 50°C (-40°F to +122°F) with W.T. DRAM & SSD & MXM Kit, CPU TDP 35W.
Vibration:
IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 – 500 Hz, 1 hr/axis).
Shock:
IEC 60068-2-27 (w/SSD: 50G@wall mount,half sine, 11 ms duration).
Certification:
CE, FCC Class A.
Mechanical
Dimensions:
(W) 280 mm x (D) 210 mm x (H) 80.5 mm.
Weight:
4.8 kg (Net) / 5.6 kg (Gross).
Mounting:
Wall mount kit.
DIN-rail kit.
Other Features
TPM:
TPM 2.0.
Watchdog Timer:
255 levels, 1 to 255 sec.
System Indicator:
1 x Green LED for system power-on.
1 x Green LED for HDD active.
4 x Green LED for programmable.
Software:
AXView 3.0.
Operating System Support:
Windows 10 IoT.
Linux.
