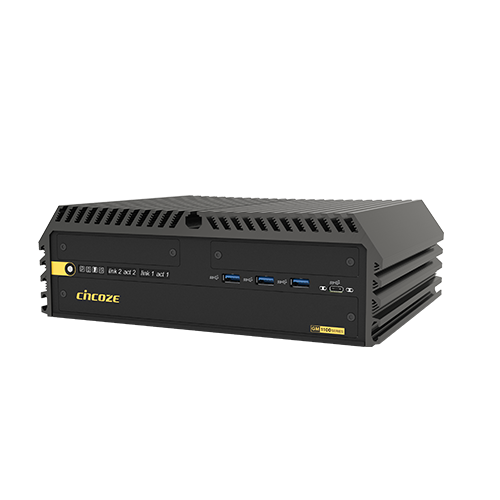

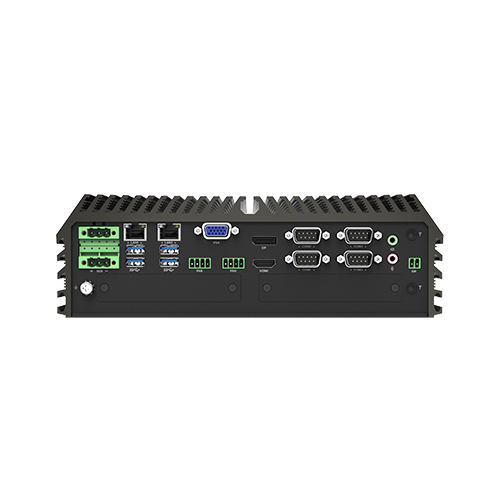

14/13/12th Gen Intel Core Series GPU Computer With Nvidia MXM Graphics Card

14th Generation Intel® Raptor Lake-S Refresh Series CPU (Coming Soon)

13th Generation Intel® Raptor Lake-S Series CPU:
Intel® Core™ i9-13900E (24 Cores / 65W TDP).
Intel® Core™ i7-13700E (16 Cores / 65W TDP).
Intel® Core™ i5-13500E (14 Cores / 65W TDP).
Intel® Core™ i5-13400E (10 Cores / 65W TDP).
Intel® Core™ i3-13100E (4 Cores / 65W TDP).
Intel® Core™ i9-13900TE (24 Cores / 35W TDP).
Intel® Core™ i7-13700TE (16 Cores / 35W TDP).
Intel® Core™ i5-13500TE (14 Cores / 35W TDP).
Intel® Core™ i3-13100TE (4 Cores / 35W TDP).

12th Generation Intel® Alder Lake-S Series CPU:
Intel® Core™ i9-12900E (16 Cores / 65W TDP).
Intel® Core™ i7-12700E (12 Cores / 65W TDP).
Intel® Core™ i5-12500E (6 Cores / 65W TDP).
Intel® Core™ i3-12100E (4 Cores / 60W TDP).
Intel® Core™ i9-12900TE (16 Cores / 35W TDP).
Intel® Core™ i7-12700TE (12 Cores / 35W TDP).
Intel® Core™ i5-12500TE (6 Cores / 35W TDP).
Intel® Core™ i3-12100TE (4 Cores / 35W TDP).
Intel® Pentium® G7400E (2 Cores / 46W TDP).
Intel® Pentium® G7400TE (2 Cores / 35W TDP).
Intel® Celeron® G6900E (2 Cores / 46W TDP).
Intel® Celeron® G6900TE (2 Cores / 35W TDP).

Chipset:
Intel R680E.

Graphics Chipset:
Integrated Intel® UHD Graphics 770 (Core™ i9/i7/i5).
Integrated Intel® UHD Graphics 730 (Core™ i3).
Integrated Intel® UHD Graphics 710 (Pentium®/Celeron®).

Supports Triple Independent Display:
DVI-I/DisplayPort/HDMI.

Memory:
2 x 4800 MHz (Un-buffered & ECC Type) DDR5 SO-DIMM Slots.
Up to 64GB Memory Supported.

SSD/HDD:
2 x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0).
Up to 15mm in Height.

M.2 SSD:
1 x M.2 Key M Type 2280 Socket, Support PCIe Gen4 x4 NVMe SSD or SATA SSD (SATA3.0).
1 x M.2 SSD Shared by M.2 Key B Type 3052 Socket, Support PCIe Gen 3×2 NVMe SSD or SATA SSD (SATA3.0).
2 x M.2 SSD Shared by M.2 Key B Type 2242 Socket, Support PCIe Gen 4×2 NVMe SSD or SATA SSD (SATA3.0).

RAID Support:
Supports RAID 0/1/ 5 & 10.

MXM Socket:
1x MXM Carrier Board Interface for MXM GPU Module Expansion.

M.2 E Key Socket:
1 x M.2 Key E Type 2230 Socket (PCIe Gen 3×2 / USB2.0), Support Wireless/Intel CNVi Module Expansion.

M.2 B Key Socket:
1 x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×2 / USB3.2 Gen2x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion.
2 x M.2 Key B Type 2242 Socket (PCIe Gen 4×2 / USB2.0 / SATA), Support Storage/Add-on Card Expansion.

SIM Socket:
2 x SIM Socket.

CMI (Combined Multiple I/O) Interface:
1 x High Speed CMI Interface for optional CMI Module Expansion.
1 x Low Speed CMI Interface for optional CMI Module Expansion.

CFM (Control Function Module) Interface:
1 x CFM IGN Interface for optional CFM-IGN Module Expansion.
