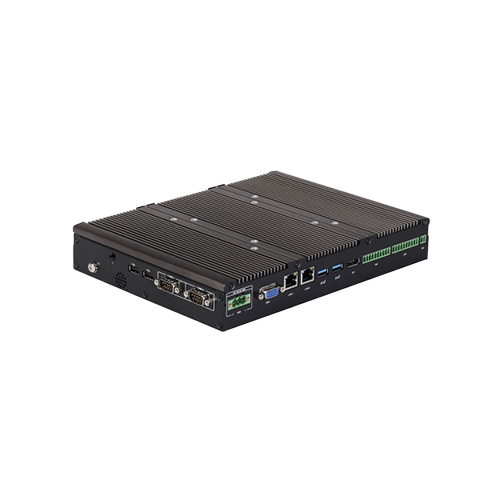

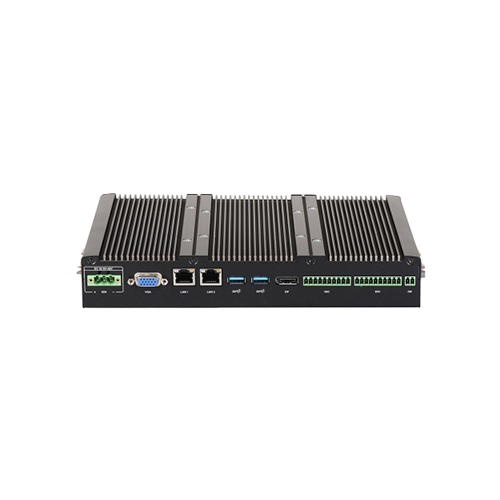

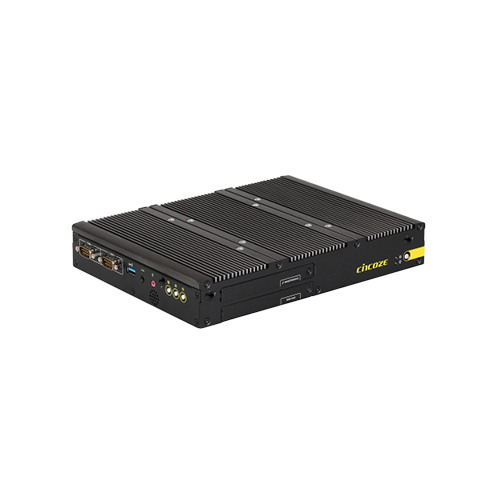

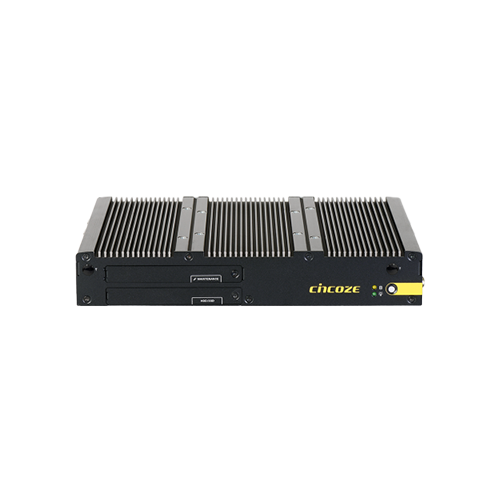

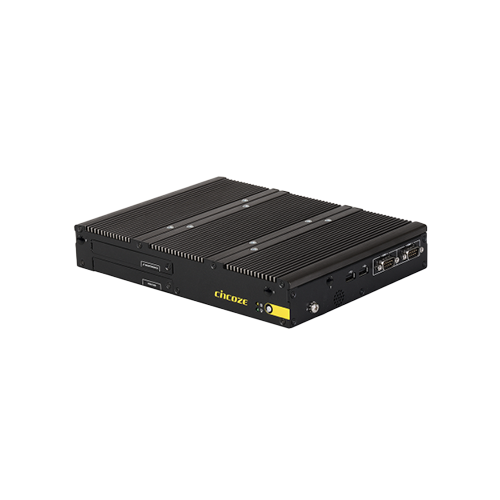

8th Gen Slim High-Performance Fanless Industrial Computer
SKU: P2102
Key Features
- Slim 41.5 mm Enclosure.
- 8th Gen Intel Core CPU.
- Up to 64GB DDR4 Memory.
- Supports PoE+ / Ignition Control.
- Convertible Display Technology (CDS).
- -40ยฐC to 70ยฐC Operating Temperature.
Overview
The Cincoze P2102, housing an 8th gen Intelยฎ Coreโข U series processor, boosts computing performance by up to 84% at 15W TDP compared to its predecessor. With two DDR4 2400 SODIMM sockets supporting up to 64GB memory, it ensures swift responsiveness and multitasking.
Featuring Intelยฎ UHD graphics 620, it enables triple independent displays (CDS/VGA/DisplayPort) and smooth 4K UHD video playback via DisplayPort. Despite its slim 41.5mm build, it offers extensive I/O options, fitting seamlessly into constrained spaces like industrial control cabinets.
For wireless connectivity, it incorporates 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions, supporting Wi-Fi, 3G, and LTE modules. It also supports Control Function Module (CFM) Technology for enhanced power functions tailored to specific applications.
Designed with robust industrial protection, a fanless/jumper-less build, and wide operational parameters (-40ยฐC to +70ยฐC), it withstands harsh environments and critical industrial settings.
Additionally, utilising Cincoze’s patented Convertible Display System (CDS) technology, it seamlessly integrates with CDS display modules for easy conversion into various-sized industrial panel PCs.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Onboard 8th Intelยฎ Coreโข U Processors (Whiskey Lake):
Intelยฎ Coreโขย i5-8365UEย Quad Core Processor (6M Cache | Up to 4.10 GHz).
Intelยฎ Coreโขย i3-8145UEย Dual Core Processor (4M Cache | Up to 3.90 GHz).
15 W TDP.
Chipset:
On board SoC.
Graphics Chipset:
Integrated Intelยฎ UHD Graphics 620.
Memory:
2 x 2400 MHz DDR4 260-Pin SO-DIMM Slots (Supports Un-buffered & Non-ECC Type).
Up to 64GB Max Memory Supported.
Storage Type:
2 x 2.5โ HDD/SSD Drive Bay (SATA 3.0).
RAID Support:
Supports RAID 0/1.
Expansion:
2 x Full-size Mini-PCIe Sockets.
1 x M.2 2230 E Key Socket for Wireless Module (Supports Intel CRF Module).
1 x Front Accessible SIM Socket.
2 x CFM Interface for optional IGN or PoE Module Expansion.
1 x Convertible Display System (CDS) Interface.
I/O
2 x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE) (RJ45).
GbE1 (Intelยฎ I219LM).
GbE2 (Intelยฎ I210).
3 x USB 3.2 (Gen2 / Type A).
2 x USB 2.0 (Type A).
4 x RS-232/422/485 with Auto Flow Control (Support 5V/12V) (DB9).
16 x Isolated Digital I/O (8in/8out) (20-Pin Terminal Block).
Power
Input Voltage Range:
9V to 48V DC.
Connector Type:
1 x ATX Power On/Off Switch.
1 x AT/ATX Mode Switch.
1 x 3-pin Terminal Block Connector with Power Input.
1 x Optional AC/DC 12V/5A (60W) or 24V/5A (120W).
1 x Remote Power On/Off Connector (2-pin Terminal Block).
Reverse Power Input:
Yes.
Over Voltage Protection Range:
51~58V.
Over Voltage Protection Type:
Shut down operating voltage, re-power on at the present level to recover.
Over Current Protection:
15A.
CMOS Battery Backup:
SuperCap Integrated for CMOS Battery Maintenance-free Operation.
Environmental
Operating Temperature:
-40ยฐC to 70ยฐC (With Extended Temperature Peripherals; Ambient with Air Flow).
Storage Temperature:
-40ยฐC to 70ยฐC.
Humidity:
95% RH @ 70หC (Non-condensing).
Shock Operating:
50 Grms, Half-sine 11 ms Duration (With SSD, according to IEC60068-2-27).
Vibration Operating:
5 Grms, 5-500 Hz, 3 Axes (With SSD, according to IEC60068-2-64).
MTBF:
231,243 hours.
Design:
Fanless Design.
Jumper-less Design.
EMC:
CE, UKCA, FCC, ICES-003 Class A.
EMI:
CISPR 32 Conducted & Radiated (Class A).
EN/BS EN 55032 Conducted & Radiated (Class A).
EN/BS EN IEC 61000-3-2 Harmonic current emissionsย (Class A).
EN/BS EN61000-3-3 Voltage fluctuations & flicker
FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated (Class A).
EMS:
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV.
EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m.
EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV.
EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV.
EN/IEC 61000-4-6 CS: 3V.
EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m.
EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz.
Safety:
UL, cUL, CB, IEC, EN62368-1.
Fire Protection:
EN 45545-2.
Mechanical
Dimensions:
(W) 254.5 x (D) 190 x (H) 41.5 mm.
Weight:
2.2 kg.
Mounting:
Wall / VESA / CDS / DIN Rail.
Other Features
CMOS:
1 x Clear CMOS Switch.
Instant Reboot:
Support 0.2sec Instant Reboot technology.
Watchdog Timer:
Software Programmable Supports 256 Levels System Reset.
Internal Speaker:
AMP 2W + 2W.
OSD Function:
LCD On/Off, Brightness Up, Brightness Down.
Reset Button:
1 x Reset Button.
Operating System Support:
Windowsยฎ 10.
Linux (Support by project).
