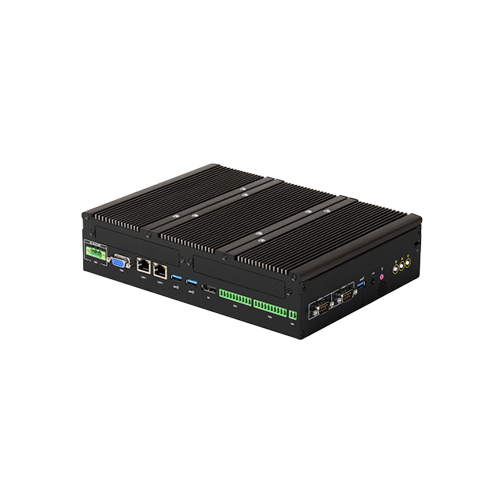

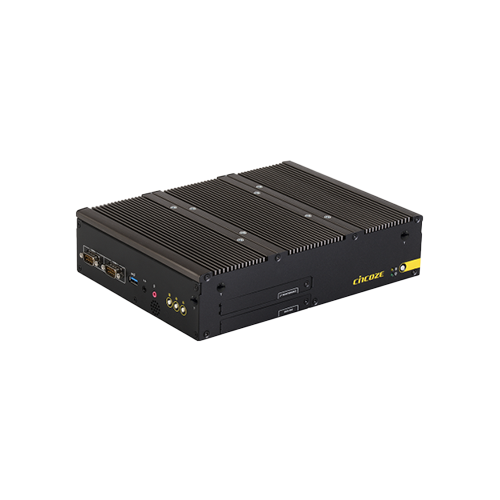

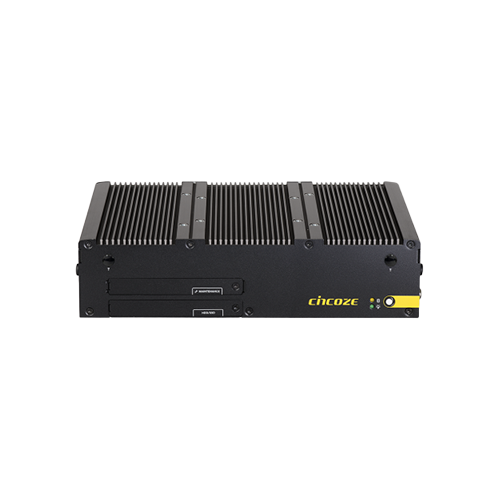

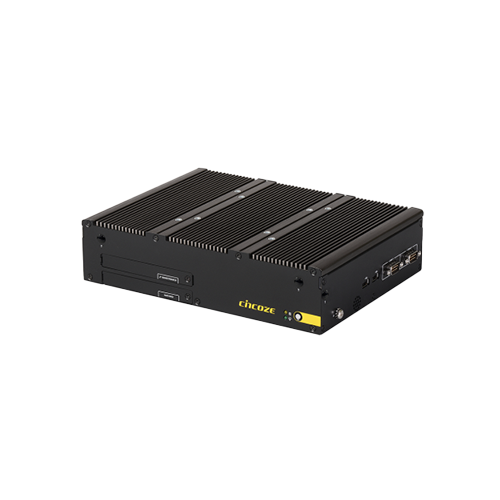

8th Gen High-Performance Fanless Industrial PC With PCI/PCIe Expansion
SKU: P2102E
Key Features
- 8th Gen Intel Coreโข U Series CPU.
- Up to 64GB DDR4 Memory.
- PCI / PCIe Expansion Slot.
- Supports PoE+ / Ignition Control.
- Convertible Display Technology (CDS).
- -40ยฐC to 70ยฐC Operating Temperature.
Overview
The Cincoze P2102E, an expandable embedded computer, features an 8th generation Intelยฎ Coreโข U series processor, boasting an 84% performance boost over its predecessor at 15 watts TDP. With 64 GB memory support via DDR4 2400 SODIMM sockets, it ensures swift responsiveness and seamless multitasking.
Powered by Intelยฎ UHD graphics 620, the Cincoze P2102Ehandles triple independent displays and 4K UHD video smoothly. It offers expansion options like 1x PCI/PCIe x4, 1x M.2 2230 E key, and 2x full-size Mini-PCIe slots for add-on cards. Utilizing Control Function Module (CFM) Technology, it enhances power capabilities for specific applications.
Built tough for industrial use, it’s fanless, jumper-less, withstands wide temperature ranges (-40ยฐC to +70ยฐC), and handles vibration/shock exceptionally (5/50 Grms). Its Cincoze patented Convertible Display System (CDS) technology allows easy conversion into different-sized industrial panel PCs.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Onboard 8th Intelยฎ Coreโข U Processors (Whiskey Lake):
Intelยฎ Coreโข i5-8365UE Quad Core Processor (6M Cache | Up to 4.10 GHz).
Intelยฎ Coreโข i3-8145UE Dual Core Processor (4M Cache | Up to 3.90 GHz).
15 W TDP.
Chipset:
On board SoC.
Graphics Chipset:
Integrated Intelยฎ UHD Graphics 620.
Maximum Display Output:
Supports Triple Independent Display.
Memory:
2 x 2400 MHz 260 Pin DDR4 SO-DIMM Slots (Support Un-buffered & Non-ECC Type).
Up to 64GB Max Memory Supported.
SSD/HDD:
2 x 2.5โ HDD/SSD Drive Bay (SATA 3.0).
RAID Support:
Supports RAID 0/1.
Mini PCI Express:
2 x Full-size Mini-PCIe Sockets.
PCI Express:
1 x PCI or 1 x PCIe x4 Expansion slot with Optional Riser Card.
* Supports maximum dimensions of add-on card (H) 111 x (L) 169mm.
M.2 E Key Socket:
1 x M.2 2230 E Key Socket for Wireless Module (Supports Intel CRF Module).
SIM Socket:
1 x Front Accessible SIM Socket.
Universal Bracket:
2 x Universal I/O Bracket.
CFM (Control Function Module) Interface:
2 x CFM Interface for optional IGN or PoE Module Expansion.
CDS (Convertible Display System) Technology:
1 x Convertible Display System (CDS) Interface.

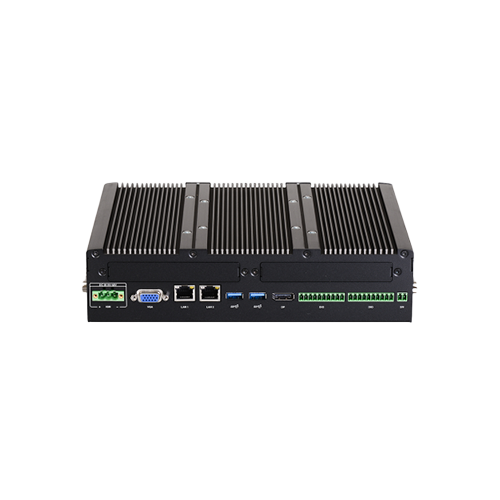

I/O
CDS:
1 x CDS Connector for Cincoze Display Module.
VGA:
1 x VGA Connector (1920 x 1200 @ 60Hz).
DP:
1 x DisplayPort Connector (4096 x 2304 @ 60Hz) (According to CPU Specifications).
* Verified maximum resolution (3840 x2160 @ 60Hz).
LAN:
2 x GbE LAN (Supports WoL / Teaming / Jumbo Frame & PXE) (RJ45).
GbE1 (Intelยฎ I219LM).
GbE2 (Intelยฎ I210).
USB:
3 x USB 3.2 Gen2 (Type A).
2 x USB 2.0 (Type A).

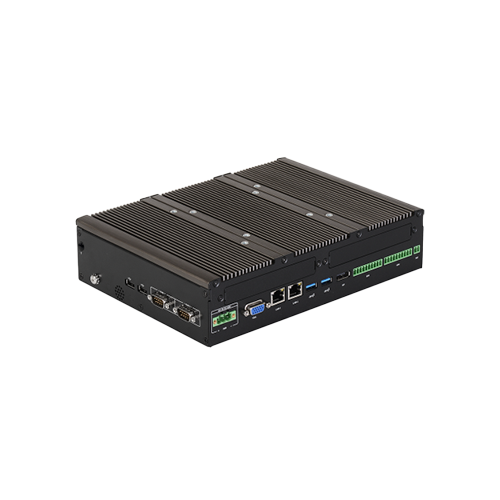

Serial Port:
4 x RS-232/422/485 with Auto Flow Control Support 5V/12V (DB9).
DIO:
16 x Isolated Digital I/O (8 in / 8 out) (20 Pin Terminal Block).
Power
Input Voltage Range:
9V to 48V DC.
Power Button:
1 x ATX Power On/Off Switch.
Power Mode Switch:
1 x AT/ATX Mode Switch.
Power Input:
1 x 3 Pin Terminal Block Connector.
Power Adapter (Optional):
1 x Optional AC/DC 12V/5A (60W) or 24V/5A (120W).
Remote Power On/Off:
1 x Remote Power On/Off Connector (2 Pin Terminal Block).
Reverse Power Input:
Yes.
Over Voltage Protection (Protection Range):
51~58V
Over Voltage Protection (Protection Type):
Shut down operating voltage / Re-power on at the present level to recover.
Over Current Protection:
15A.
CMOS Battery Backup:
SuperCap Integrated for CMOS Battery Maintenance-free Operation.
MTBF:
231,243 hours.
Environmental
Operating Temperature (Ambient with Air Flow):
-40ยฐC to 70ยฐC (With Extended Temperature Peripherals).
Storage Temperature:
-40ยฐC to 70ยฐC.
Relative humidity:
95% RH @ 70หC (Non-condensing).
Shock:
Operating, 50 Grms, Half-sine 11 ms Duration (With SSD, according to IEC60068-2-27).
Vibration:
Operating, 5 Grms, 5-500 Hz, 3 Axes (With SSD, according to IEC60068-2-64).
Operating, 1 Grms, 10-500 Hz, 3 Axes (With CV-W124 only, according to IEC60068-2-6).
EMC:
CE, UKCA, FCC, ICES-003 Class A.
EMI:
CISPR 32 Conducted & Radiated (Class A).
EN/BS EN 55032 Conducted & Radiated (Class A).
EN/BS EN IEC 61000-3-2 Harmonic current emissionsย (Class A).
EN/BS EN61000-3-3 Voltage fluctuations & flicker
FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated (Class A).
EMS:
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV.
EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m.
EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV.
EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV.
EN/IEC 61000-4-6 CS: 3V.
EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m.
EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz.
Safety:
UL, cUL, CB, IEC, EN62368-1.
Fire Protection:
EN 45545-2.
Mechanical
Dimensions:
(W) 254.5 x (D) 190 x (H) 61 mm.
Weight:
2.7 kg.
Mounting:
Wall / VESA / CDS / DIN Rail.
Other Features
Clear CMOS Switch:
1 x Clear CMOS Switch.
Instant Reboot:
Supports 0.2sec Instant Reboot technology.
Watchdog Timer:
Software Programmable Supports 256 Levels System Reset.
Internal Speaker:
AMP 2W + 2W.
OSD Function:
LCD On/Off / Brightness Up / Brightness Down.
Reset Button:
1 x Reset Button.
Mechanical Construction:
Extruded Aluminum with Heavy Duty Metal.
Operating System Support:
Windowsยฎ 10.
Linux (Support by project).
