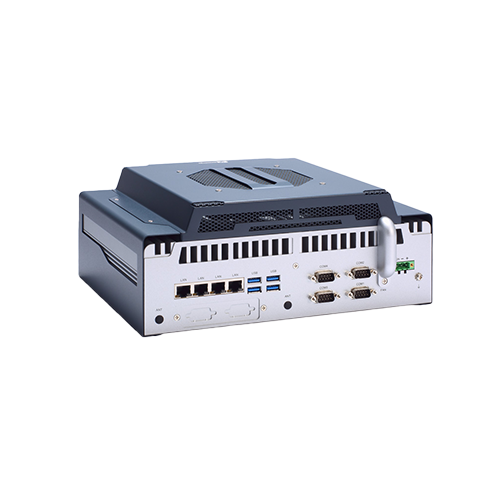

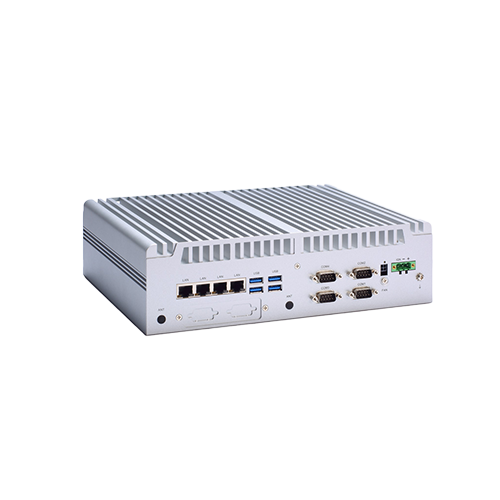

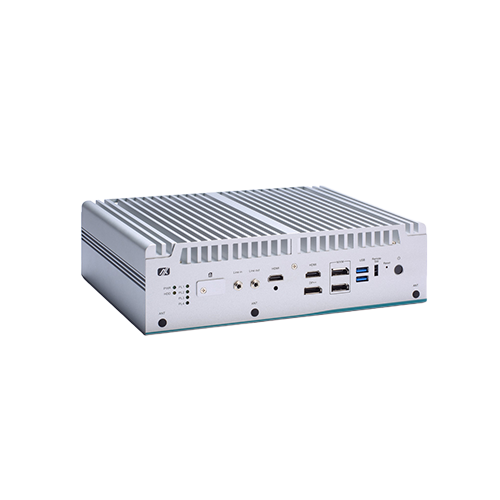

Fanless Industrial GPU Computer With 14th Gen Intel Raptor Lake Series CPU
SKU: eBOX671B
Key Features
- 14th Gen Intel Core CPU Support
- Full-Length PCIe x16 Expansion
- 4 PoE Ports + Dual 2.5GbE LAN
- TPM 2.0 & Wide Voltage Input (12–24V DC)
- Fanless & Rugged Design
- Wide Operating Temperature
Overview
This compact, fanless industrial GPU computer is designed for demanding edge AI and machine vision applications. Powered by 14th Gen Intel® Core™ processors and supporting full-height, full-length PCIe x16 graphics cards, it delivers exceptional performance for real-time data processing, AI inference, and high-resolution imaging.
With rugged construction and wide operating temperature support, it’s built to perform reliably in harsh environments, including AIoT, smart manufacturing, intelligent transportation, and edge analytics deployments.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Processor(s):
14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 & Celeron® Processor (35W/65W).
LGA1700 Socket.
Chipset:
Intel® R680E.
Memory:
2 x 262-pin DDR5-4800 SO-DIMM (Up to 64GB).
Storage:
2 x 2.5″ SATA HDD/SSD (Up to 15 mm height) (RAID 0/1 Supported).
1 x NVMe by M.2 Key M 2280.
1 x mSATA (Enable in BIOS setting).
Expansion:
1 x Full-size PCI Express Mini Card Slot (USB 2.0 + PCIe + SIM + mSATA signal).
1 x M.2 Key M 2280 Socket (For storage).
1 x M.2 Key E 2230 Socket (For Wi-Fi 6E).
1 x M.2 Key B 3052 Socket (For 5G).
1 x Internal SIM Slot For PCIe Mini Card slot.
1 x MXM3.1 (Type A) Connector.
1 x Flexible IO Window (2 x DB9 half-cut bracket by default).
I/O
Serial (COM):
2 x RS-232/422/485 (With Autoflow).
2 x RS-232.
USB:
6 x USB 3.2 (Gen2).
Ethernet/PoE:
3 x 2.5 GbE* LAN (Intel® I226-IT).
1 x GbE* LAN (Intel® I219-LM).
*4 x PoE By Option (IEEE802.3at) (Up to 60W).
Display:
2 x HDMI 1.4b (1 x Lockable).
1 x DisplayPort 1.2a.
2 x DisplayPort 1.4a (Via Optional MXM Kit).
Digital I/O:
N/A.
Audio:
1 x Audio (MIC-in/Line-out).
Power
Input Voltage:
9 to 36VDC With Ignition For Standard.
Optional:
PoE Function Only Supports 24V DC Input.
Environmental
Construction:
Aluminum Extrusion & Heavy-Duty Steel (IP40).
Operating Temperature (Without MXM module (For CPU 35W/65W):
-40°C to +65°C (-40°F to +140°F) (With wide temperature DRAM & SSD).
Operating Temperature With MXM module (Only for CPU 35W) (For W.T. MXM T1000 & A500):
-40°C to +50°C (-40°F to +122°F) (With wide temperature DRAM & SSD).
Operating Temperature With MXM module (Only for CPU 35W) (For W.T. MXM A2000 and must with optional fan kit):
-40°C to +50°C (-40°F to +122°F) (With wide temperature DRAM & SSD).
Relative Humidity:
10% – 90% (Non-condensing).
Vibration:
IEC 60068-2-64 (With SSD: 3Grms STD random) (5 – 500 Hz) (1 Hour / axis).
Shock:
IEC 60068-2-27 (With SSD) (50G Half-sine) (11 ms Duration).
Certifications:
CE / FCC Class A / UKCA.
Mechanical
Dimensions (W x D x H):
280 x 210 x 80.5 mm (11.02″ x 8.26″ x 3.16″).
Weight (Net / Gross):
4.2 kg (9.25 lb) / 5 kg (11.02 lb).
Mounting:
Wall / DIN-Rail Kit.
Other Features
BIOS:
AMI.
Watchdog Timer:
255 levels, 1 to 255 sec.
Operating System Support:
Windows 10 / 11 IoT.
Linux.
Others:
TPM 2.0.
1 x Power Button.
1 x Remote Switch.
1 x Front Access SIM Slot With Cover (For M.2 Key B).
1 x Reset Switch Connector.
5 x Antenna Opening.
1 x Grounding Screw.
