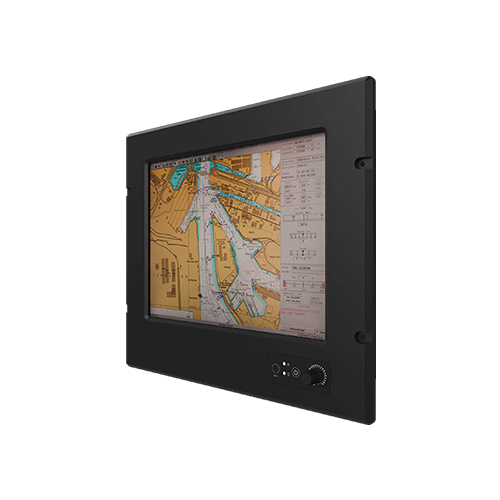

12.1″ Marine Approved Panel PC With 11th Gen Intel CPU.

SKU: R12IT3S-MRM2

Key Features

Overview

Built for marine environments, the Winmate R12IT3S-MRM2 Panel PC boasts a powerful 11th Gen Intel Core i7-1165G7 processor, ensuring smooth operation for even demanding tasks at sea.

A convenient dimming knob allows for precise control over screen brightness, adapting to various lighting conditions, alongside a wide range of connectivity options, fostering seamless integration with other marine equipment.

Additionally, its durable design features a panel-mount IP66 aluminum housing with a powder coat finish, providing superior protection against water and dust ingress.

Need Assistance?

Specifications

System

Screen Size:
12.1″.

Resolution:
1024 x 768.

Brightness:
500 nits.

Touch Technology:
Resistive Touch Screen.
AR Glass (Optional).

Processor:
Intel Core i7-1165G7 (Up to 4.7GHz).

Chipset:
SoC.

Memory:
1 x SO-DIMM DDR4 2400 MHz (4GB Pre-installed).
Optional 8GB / 16GB / 32GB.

Storage:
1 x M.2 M-Key 2280 NVMe SSD (128GB Pre-installed).
Optional 256GB / 512GB / 1TB / 2TB / 4TB.

Graphics:
Onboard.

I/O

USB:
2 x USB 3.0.

Serial:
1 x RS232.
4 x RS232 or 4 x Isolation RS422/485 (Optional).

LAN:
2 x RJ45-10/100/1000 Mbps.

Video:
1 x HDMI (Optional).

Power

Power Rating:
9V to 36V DC Input Acceptable.

Consumption:
55W (Typical).

Environmental

Operating Humidity:
5% to 95%.

Operating Temperature:
-15°C to 55°C

Shock:
15G (11ms duration).

Vibration:
0.7g@DNVGL CG-0339 (Class A).

IP Rating:
IP66 (Front Side).

Certification:
CE / FCC.

Mechanical

Dimension:
412 x 345 x 71.7 mm

Cut out:
360 x 302 mm.

Weight:
4.5 kg.

Mounting:
VESA Mount/ Panel Mount.

Other Features

Operating System Support:
Windows 11 IoT Enterprise (64-bit).
Optional Windows 11 Pro (64-bit).
Optional Windows 10 IoT Enterprise (64-bit).
Note: Only Windows 11 supports Wake on Touch.

Documentation & Support

Request a Quote

Tell us about your requirements and our team will provide a quotation and confirm whether this product is suitable for your application.
