4U Military Grade Rackmount Computer For Intel Xeon Scalable CPU
SKU: DR-4000
Key Features
- 7 x Full Height Expansion Slots
- Dual Slot Graphics Card Support.
- Intelยฎ Xeonยฎ Scalable CPU.
- Filtered AC Power Input.
- Designed to Meet DEF STAN 00-35.
- 0ยฐC to 40ยฐC Operating Temperature.
Overview
The DR-4000 is a military grade 4U computer that supports fitered power input and full length, dual slot graphics cards.
With support for the latest Intelยฎ Xeonยฎ scalable processors (Up to 270W TDP), Up to 384GB DDR4 RAM, 2.5 Gigabit Ethernet and PCIe (Gen 4), the DR-4000 packs a lot of functionality into a compact and customisable enclosure.
By using industrial components throughout, the DR-4000 is designed to operate 24/7 in harsh environments and mission-critical applications.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Processor(s):
3rd Gen Intelยฎ Xeonยฎ scalable processors.
Up to 270W TDP.
Memory:
Up to 384GB 3200 MHz non ECC DDR4.
Storage:
6 x SATA-600 with RAID 0/1/5/10.
M.2 (Key M) (2280) slot with PCIe x4 signal.
Expansion:
Slot 1: PCIe x8.
Slot 2: PCIe x16 (Gen4).
Slot 3: M.2 key M 2280 (Signal x4).
Slot 4: PCIe x16 (Gen4).
Slot 5: PCIe x8 slot (Signal x0 or x8).
Slot 6: PCIe x16 (Signal x16 or x8).
Slot 7: PCIe x8.
I/O

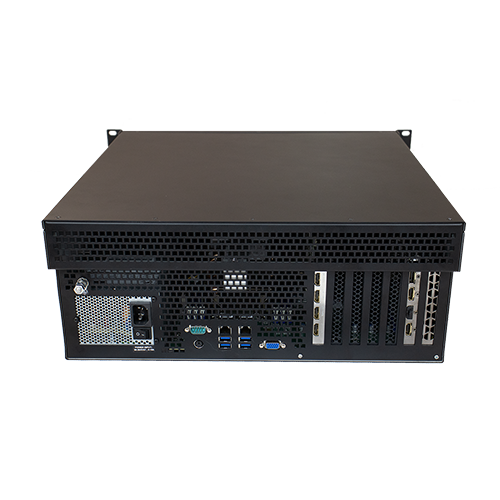

Rear I/O:
1 x Serial RS-232/422/485.
4 x USB 3.1 (Gen 1).
2 x 10/100/1000 Mbps Ethernet.
1 x VGA.
1 x PS/2 Keyboard & mouse.
Front I/O:
2 x USB 2.0.
Power
Full range AC input (700W Max).
Environmental
Operating Temperature:
0ยฐC to 40ยฐC.
Non Operating Temperature:
-40ยฐC to 60ยฐC.
Environmental Designed to meet:
DEF STAN 00-35 (Below decks).
MIL-STD-810H.
EMC Designed to meet:
DEF STAN 59-411.
MIL-STD-461
Certifications:
CE.
Mechanical
Dimensions (W x D x H):
482 x 178 x 449 mm.
Other Features
TPM:
TPM 2.0 module (Optional).
OS Support:
Windows 10 & 11.
Linux (RHEL + Ubuntu).
Documentation & Support
- Documents & Drivers
- Need Help? Get In Touch
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
- Check Out Our Latest Insights
Request a Quote
Tell us about your requirements and our team will provide a quotation and confirm whether this product is suitable for your application.
