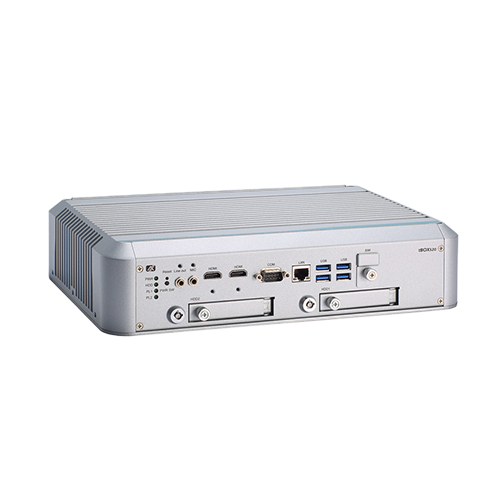

12th Gen Rail Certified Fanless Embedded Computer
SKU: tBOX520
Key Features
- EN 50155 / EN 45545-2 Certified.
- 12th Gen Intel® Core™ CPU.
- 24 to 110 VDC Power.
- Value-added I/O Modules.
- ACC Ignition Support.
- -40°C to 70°C Operating Temperature.
Overview
The Axiomtek tBOX520 is proven to meet the demanding requirements of marine and rail applications. The flexible design, along with compliance to EN50155 and IEC60945, means you’ll be up-and-running in no time.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Processor:
12th Gen Intel® Core™ i7/i5/i3.
Chipset:
On board SoC.
Memory:
2 x DDR5-4800 SO-DIMM (Up to 64GB supported).
Storage:
2 x Swappable 2.5″ SATA drive (9.5 mm height).
Intel® RAID 0/1 supported.
Expansion:
1 x M.2 M key 2280 NVMe SSD (PCIe x4).
1 x M.2 B key for 5G/WiFi 6/BT (PCIe/USB).
1 x Full-size Rev.1.2 mPCIe for LTE/WIFI/BT (PCIe/USB).
2 x Nano SIM slot.
1 x M.2 A+E key for WiFi 6/BT (PCIe/USB).
I/O
1 x DB9 serial console or RS-232/422/485.
2 x Type A HDMI 1.4 (4K).
1 x Mic-in, 1 x Line-out.
1 x RJ-45 2.5GbE (Intel® i226-IT).
4 x USB 3.0.
1 x Reset button.
8 x Antenna opening.
1 x Power button.

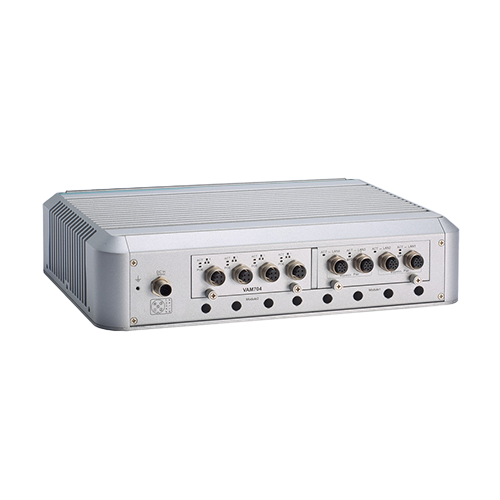

PoE (PSE, Power Sourcing Equipment):
Up to 8 configurable M12/RJ-45 PoE.
PoE (802.3af 15.4W/port).
PoE+ (802.3at 30W/port).
To be used with VAM PoE:
Internal PoE Power.
External PoE Power with PSU120-259.
Power
1 x M12 / 24 to 110 VDC.
Environmental
Operating Temperature:
-40°C to +70°C With wide temperature peripheral.
Humidity:
10% ~ 95% (Non-condensing).
Shock:
EN(IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction).
Vibration:
3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating).
1.5 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating).
2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating).
MIL-STD-810G, Method 514.6C-VI Category 4 compliant.
Certification:
CE (Class A), LVD, FCC (Class A), EN 50155**, EN 45545-2***.
EN 61000-6-4 (Class A), EN 61000-6-2,
FCC part 15 B (Class A).
EN 60950-1.
Mechanical
Dimensions (W x D x H):
321 mm x 210.2 mm x 73.3 mm (Without wall mount).
Other Features
OS Support:
Windows® 10 (64-bit).
Ubuntu 16.04.
BIOS:
AMI.
Security:
TPM 2.0.
Watchdog Timer:
255 levels, 1 to 255 sec.
System Indicator:
1 x LED indicator for power.
1 x LED indicator for SATA drive activity.
2 x Programmable.
Software Support:
AXView.
