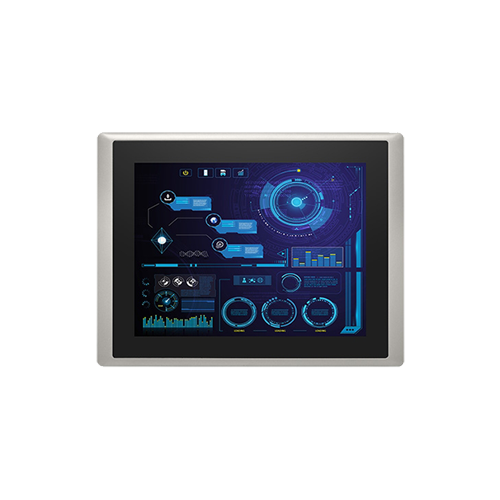

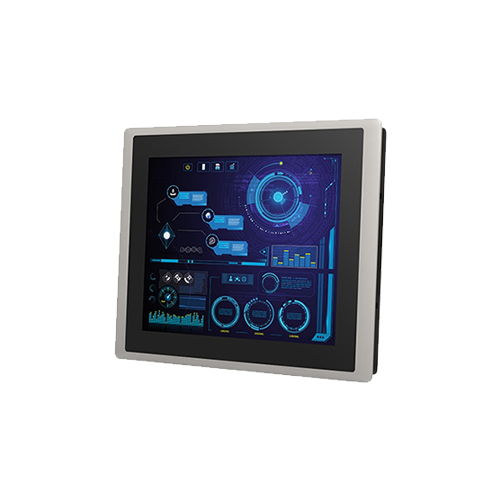

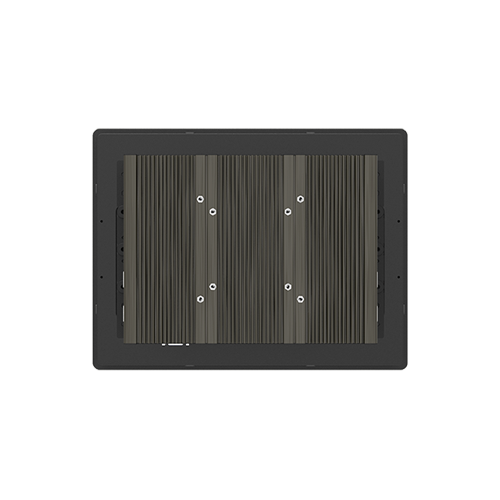

12.1″ Modular Industrial Panel PC With Alder Lake-P CPU.
Key Features
- 12.1" XGA Multi Touch Display.
- Intel® Alder Lake-P U-Series CPU.
- Up to 64GB DDR5 4800MHz Memory.
- Quad Independent Display Support.
- Supports PoE+ Function.
- -40°C to 70°C Operating Temperature.
Overview
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Screen Size:
12.1″ (4:3).
Resolution:
1024 x 768.
Graphics:
Integrated Intel® Iris® Xe Graphics (Core™ i5-1245UE).
Integrated Intel® UHD Graphics (Core™ i3-1215UE).
Brightness:
500 nits.
Touchscreen (CV-112HR Display Module):
Resistive (5-Wire).
Touchscreen (CV-112HC Display Module):
Projected Capacitive.
Onboard 12th Generation Intel® Alder Lake-P U-Series CPU:
Intel® Core™ i5-1245UE (10 Cores / Up to 4.40 GHz / 15W TDP).
Intel® Core™ i3-1215UE (6 Cores / Up to 4.40 GHz / 15W TDP).
Chipset:
SoC.
Memory:
2 x 4800MHz DDR5 SO-DIMM (Supports Un-buffered and non-ECC Type).
Up to 64GB Maximum Capacity.
SATA (SSD/HDD):
2 x 2.5” SATA HDD/SSD Bay (SATA 3.0).
RAID Support:
Supports RAID 0/1.
Mini PCI Express:
2 x Full-size Mini-PCIe Socket.
SIM Socket:
1 x SIM Socket.
M.2:
1 x M.2 Key E Type 2230 Socket (Supports Intel CNVi/Wireless Module).
CFM (Control Function Module) Interface:
1 x CFM Interface for optional IGN Module Expansion.
1 x CFM Interface for optional PoE Module Expansion.
CDS (Convertible Display System) Interface:
1 x CDS Interface for Convertible Display Module.
PCI Express (P2202E Module Only):
1 x PCI or 1x PCIe x4 Expansion slot (With Optional Riser Card).
Supports maximum dimensions of add-on card (H) 111 x (L) 169mm.
I/O
CDS:
1 x CDS Connector (1920 x 1080 @ 60Hz).
DP:
1 x DisplayPort Connector (4096 x 2304 @ 60Hz).
Verified maximum resolution is 3840 x 2160 @ 60Hz.
HDMI:
1 x HDMI Connector (3840 x 2160 @ 30Hz).
VGA:
1 x VGA Connector (1920 x 1200 @ 60Hz).
LAN:
2 x 1GbE LAN (RJ45) (GbE1: Intel® I219 / GbE2: Intel® I210).
COM:
4 x RS-232/422/485 With Auto Flow Control (Supports 5V/12V) (DB9).
USB:
3 x USB 3.2 Gen2x1 (10Gbps) (Type A).
1 x USB 2.0 (480Mbps) (Type A).
DIO:
16 x Isolated Digital I/O (8 In / 8 Out) (20-Pin Terminal Block).
Audio:
Audio Codec Realtek® ALC888 (High Definition Audio).
1 x Line-out (Phone Jack 3.5mm).
1 x Mic-in (Phone Jack 3.5mm).
Power
Input Voltage Range:
9V to 48V DC.
Connector Type:
Terminal Block (3 Pin).
Power Button:
1 x ATX Power On/Off Button.
Power Mode Switch:
1 x AT/ATX Mode Switch.
Power Input:
9V to 48V DC (3 Pin Terminal Block).
Remote Power On/Off:
1 x Remote Power On/Off (2 Pin Terminal Block).
Reverse Power Input Protection:
Yes.
Over Voltage Protectio Range:
51V to 58V.
Over Voltage Protection Type:
Shut down operating voltage, re-power on at the preset level to recover.
Over Current Protection:
15A.
CMOS Battery Backup:
SuperCap Integrated for CMOS Battery Maintenance-free Operation.
MTBF:
216,747 Hours – Database: Telcordia SR-332 Issue3, Method 1, Case 3.
Environmental
Operating Temperature:
-40°C to 70°C.
With extended temperature peripherals; Ambient with air flow.
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14.
Storage Temperature:
-40°C to 70°C.
Relative Humidity:
95%RH @ 70°C (Non-Condensing).
Shock:
Operating, 50 Grms (With SSD | According to IEC60068-2-27).
Vibration:
Operating, 1 Grms, 10-500 Hz, 3 Axes (With SSD | According to IEC60068-2-6).
Operating, 5 Grms, 5-500 Hz, 3 Axes (With SSD | According to IEC60068-2-64).
IP Rating:
IP 65 Compliant.
EMC:
CE, UKCA, FCC, ICES-003 Class A.
EMI:
CISPR 32 Conducted & Radiated (Class A).
EN/BS EN 55032 Conducted & Radiated (Class A).
EN/BS EN IEC 61000-3-2 Harmonic current emissions (Class A).
EN/BS EN61000-3-3 Voltage fluctuations & flicker.
FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated (Class A).
EMS:
EN/IEC 61000-4-2 ESD (4 kV Contact / 8 kV Air).
EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz (3 V/m).
EN/IEC 61000-4-4 EFT: AC Power (1 kV / 0.5 kV DC Power / 0.5 kV Signal).
EN/IEC 61000-4-5 Surges: AC Power (2 kV / 1 kV Signal).
EN/IEC 61000-4-6 CS (3V).
EN/IEC 61000-4-8 PFMF (50 Hz) (1A/m).
EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions (0.5 cycles at 50 Hz).
Safety:
UL, cUL, CB, IEC, EN62368-1.
Fire Protection:
EN 45545-2.
Mechanical
Dimensions (Display Module):
(W) 345 x (D) 265.3 x (H) 57 mm.
Dimensions (P2202 Computing Module):
(W) 254.5 x (D) 190 x (H) 41.5 mm.
Dimensions (P2202E Computing Module):
(W) 254.5 x (D) 190 x (H) 61 mm.
Weight (Display Module):
3.16 kg.
Weight (P2202 Computing Module):
2.2 kg.
Weight (P2202E Computing Module):
2.74 kg.
Mounting:
Wall / VESA / CDS / DIN Rail.
Other Features
Maximum Display Output:
Supports Quad Independent Display.
BIOS:
AMI BIOS.
Clear CMOS Switch:
1 x Clear CMOS Switch.
Reset Button:
1 x Reset Button
Instant Reboot:
Support 0.2sec Instant Reboot Technology.
Watchdog Timer:
Software Programmable Supports 256 Levels System Reset.
OSD Button:
LCD On/Off, Brightness Up, Brightness Down.
Internal Speaker:
AMP 2W + 2W.
Status LED Indicator:
Power LED, HDD LED.
Operating System Support:
Windows®11 | Windows®10.
Linux Ubuntu 22.04.
